FU-500 Feeder Controller unit with 3 wired cord.
See specifications tab for unit configuration options
Specifications
| Model Name | FU-500 |
| Part No. | FX500-71X (Straight Type) |
| Input Voltage | 127 VAC 50/60 Hz |
| Power Consumption | 35W |
| ESD Safe | Yes |
| Outer Dimension | 5.7 x 3.9 x 9.1 in. (145 x 100 x 230 mm) |
| Weight w/o Cord | 5.1 lb. (2.3 kg) |
Feeder Unit
| Part No. | ( Straight Type) |
| Compatible Solder Diameter | 0.3-1.6 mm |
| Weight | 1.8 lb (800g) |

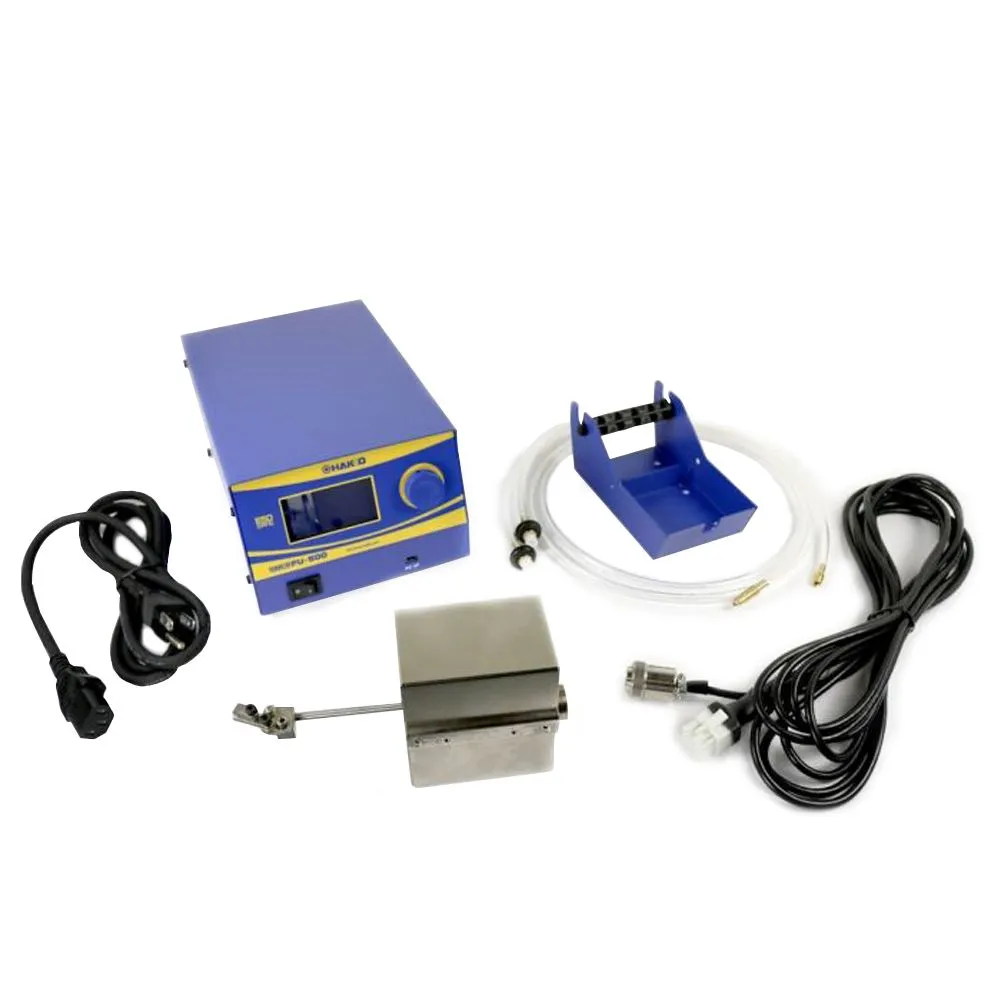

What's in the box?
| Description | Part No. |
| FU-500 Solder Feed Unit | FU500-71X |
| Feeder Unit (Straight Type) | |
| Tube Unit (0.3-1.0 mm) | |
| Tube Unit (1.2-1.6 mm) | |
| Feeder Cable | |
| Power Cord | B3508 |
| Solder Reel Stand | |
| Instruction Manual | -- |
Configuration Options
To configure the FU-500 for use with your soldering application, select the Feeder Drive, Guide Pipe Assembly, and PTFE Tube Insert based on the diameter of the solder you will be using. These parts are sold seperately, but are required for the station to be operational.
| Solder Diameter | |||||||
| 0.3 mm | 0.5 mm | 0.6 mm | 0.8 mm | 1.0 mm | 1.2 mm | 1.6 mm | |
| Feeder Drive | |||||||
| Guide Pipe Assembly | |||||||
| PTFE Tube Insert | |||||||
Hakko’s FU-500 Intelligent Solder Feeder works in conjunction with the Hakko Robotic Integration Soldering Module and can be integrated with various robotic systems to achieve low-cost soldering automation.
The FU-500 Intelligent Solder Feeder lends a helping hand to automatically feed the solder wire to a specific position and allows for easy adjustment of the solder feed position, which is critical for automated systems. The Intelligent Solder Feeder Unit also features a compact driver unit that allows the feed to be brought closer to the iron, increasing the accuracy of the amount of solder fed.
With an optical sensor, the FU-500 can detect solder clogging, slipping, and the end of the solder roll. The Intelligent Solder Feeder is also equipped with a mechanism that perforates into the solder wire as a countermeasure against flux and solder splash.
